Container Size

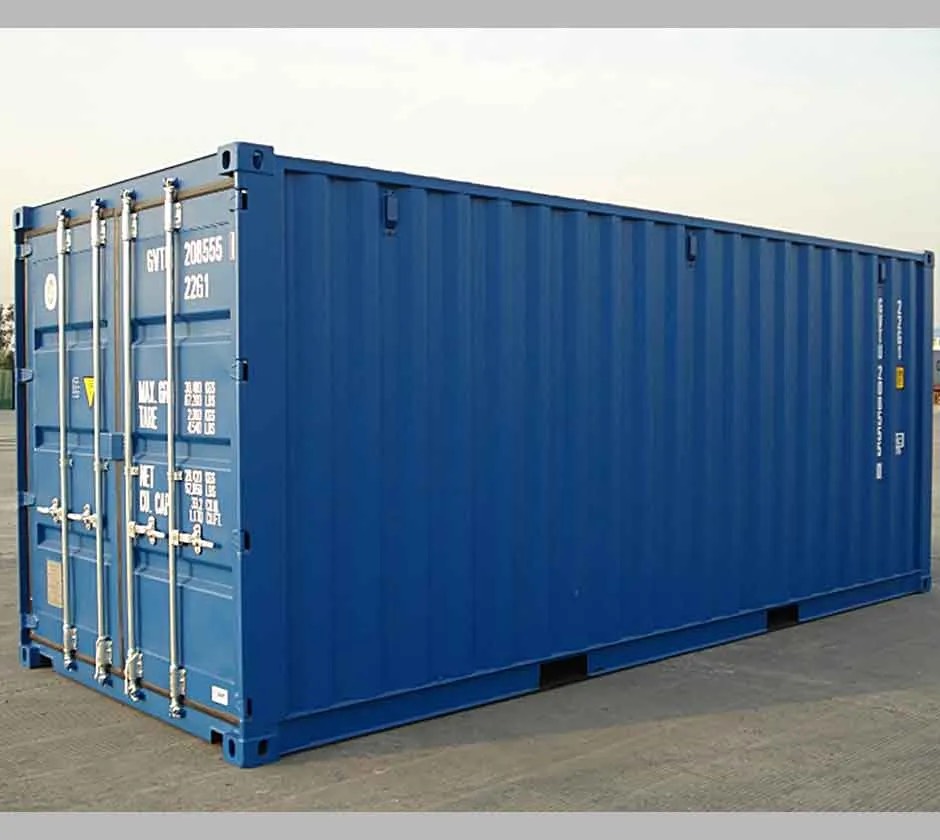

20’ Dry Container
Specification
External
Width
2,440 mm
8 ft
Height
2,590 mm
8 ft 6.0 in
Length
6,060 mm
20 ft
Internal
Width
2,352 mm
7 ft 8.6 in
Height
2,395 mm
7 ft 10.3 in
Length
5,898 mm
19 ft 4.2 in
Volume
33.2 cu m
1,173 cu ft
Tare Weight
2,200 kg
4,850 lbs
Gross Weight
28,280 kg
62,346 lbs
Maximum Load
30,480 kg
67,196 lbs
40’ Dry Container
Specification
External
Width
2,440 mm
8 ft
Height
2,590 mm
8 ft 6.0 in
Length
12,190 mm
40 ft
Internal
Width
2,350 mm
7ft 8.5 in
Height
2,392 mm
7 ft 10.2 in
Length
12,032 mm
39 ft 5.7 in
Volume
67.6 cu m
2,389 cu ft
Tare Weight
3,730 kg
8,223 lbs
Gross Weight
26,750 kg
58,793 lbs
Maximum Load
30,480 kg
67,196 lbs
40 Foot High Cube Container
Specification
External
Width
2,440 mm
8 ft
Height
2,895 mm
9 ft 6.0 in
Length
12,190 mm
40 ft
Internal
Width
2,352 mm
7 ft 8.6 in
Height
2,698 mm
8 ft 10.2 in
Length
12,023 mm
39 ft 5.3 in
Volume
76.2 cu m
2,694 cu ft
Tare Weight
3,900 kg
8,598 lbs
Gross Weight
26,580 kg
58,598 lbs
Maximum Load
30,480 kg
67,196 lbs
20 Foot Open Top Container
Specification
External
Width
2,440 mm
8 ft
Height
2,590 mm
8 ft 6.0 in
Length
6,060 mm
20 ft
Internal
Width
2,348 mm
7 ft 8.4 in
Height
2,360 mm
7 ft 8.9 in
Length
5,900 mm
19 ft 4.3 in
Volume
32.6 cu m
1,155 cu ft
Tare Weight
2,300 kg
5,070 lbs
Gross Weight
28,180 kg
62,126 lbs
Maximum Load
30,480 kg
67,196 lbs
40 Foot Open Top Container
Specification
External
Width
2,440 mm
8 ft
Height
2,590 mm
8 ft 6.0 in
Length
12,190 mm
40 ft
Internal
Width
2,348 mm
7 ft 8.4 in
Height
2,360 mm
7 ft 8.9 in
Length
12,034 mm
39 ft 5.8 in
Volume
66.6 cu m
2,355 cu ft
Tare Weight
3,800 kg
8,377 lbs
Gross Weight
26,680 kg
58,819 lbs
Maximum Load
30,480 kg
67,196 lbs

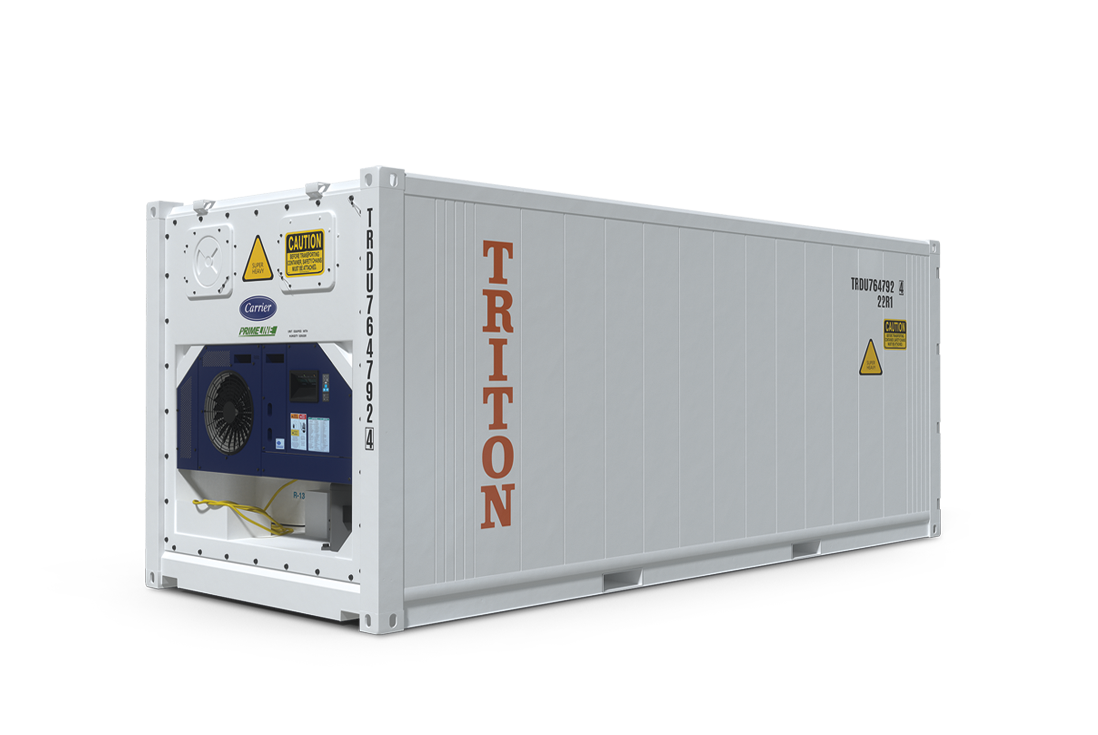

20' Refrigerated Container
Specification
External
Width
2,440 mm
8 ft
Height
2,590 mm
8 ft 6.0 in
Length
6,060 mm
20 ft
Internal
Width
2,286 mm
7 ft 6.0 in
Height
2,265 mm
7 ft 5.2 in
Length
5,485 mm
17 ft 11.9 in
Volume
28.4 cu m
1004.5 cu ft
Tare Weight
3,200 kg
7,055 lbs
Gross Weight
27,280 kg
60,141 lbs
Maximum Load
30,480 kg
67,196 lbs
40' High Cube Refrigerated Container
Specification
External
Width
2,440 mm
8 ft
Height
2,895 mm
9 ft 6.0 in
Length
12,190 mm
40 ft
Internal
Width
2,296 mm
7ft 6.4 in
Height
2,521 mm
8 ft 3.3 in
Length
11,572 mm
37 ft 11.6 in
Volume
67.0 cu m
2,369.8 cu ft
Tare Weight
4,290 kg
9,458 lbs
Gross Weight
28,210 kg
62,192 lbs
Maximum Load
32,500 kg
71,650 lbs

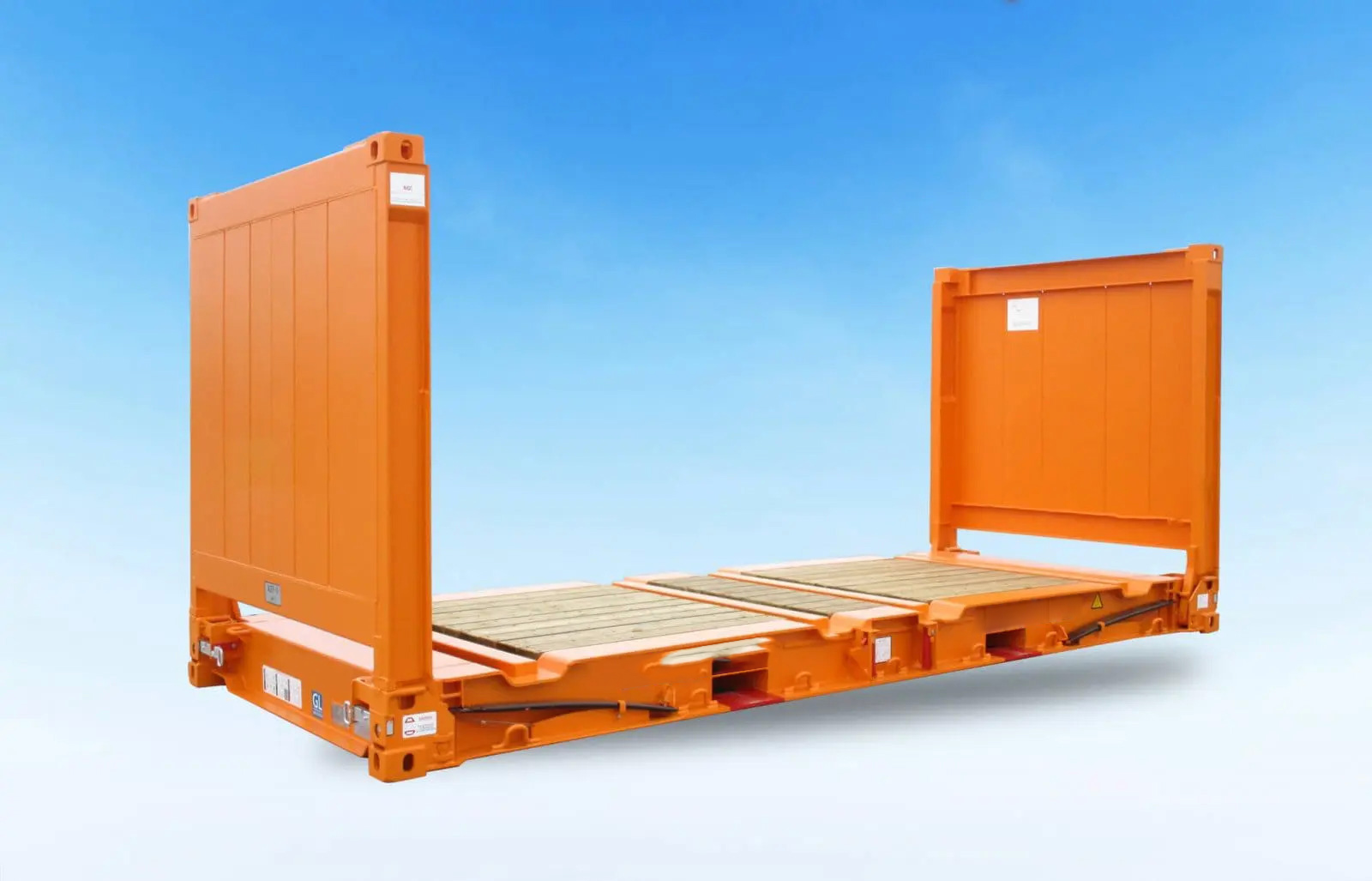

20 Foot Flat Rack
Specification
External
Width
2,440 mm
8 ft
Height
2,590 mm
8 ft 6.0 in
Length
6,060 mm
20 ft
Internal
Width
2,347 mm
7 ft 8.4 in
Height
2,295 mm
7 ft 8.9 in
Length
5,883 mm
19 ft 4.3 in
Volume
32.6 cu m
1,166 cu ft
Tare Weight
2,750 kg
6,060 lbs
Gross Weight
31,158 kg
68,690 lbs
Maximum Load
34,000 kg
74,950 lbs
40 Foot Flat Rack
Specification
External
Width
2,440 mm
8 ft
Height
2,590 mm
8 ft 6.0 in
Length
12,190 mm
40 ft
Internal
Width
2,347 mm
7 ft 8.5 in
Height
1,954 mm
6 ft 5 in
Length
11,650 mm
38 ft 3 in
Volume
49.4 cu m
1,766 cu ft
Tare Weight
6,100 kg
13,448 lbs
Gross Weight
38,900 kg
85,759 lbs
Maximum Load
45,000 kg
99,207 lbs
20' IS0 Tank Container
Specification
External
Width
2,440 mm
8 ft
Height
2,590 mm
8 ft 6.0 in
Length
6,060 mm
20 ft
Volume
21,000 liters
5,547 gallons
Tare Weight
3,070 kg
6,768 lbs
Gross Weight
27,410 kg
60,425 lbs
Maximum Load
30,480 kg
67,200 lbs
